| Part number: | MKP1848H57090KK2 |

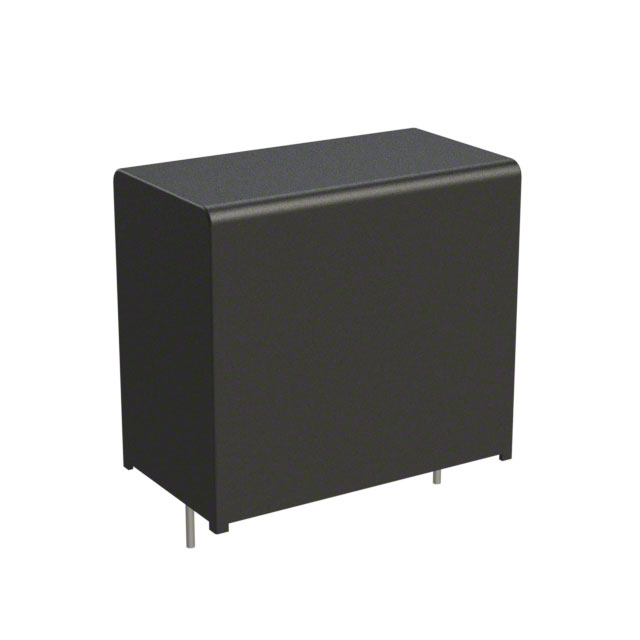

| Description: | CAP FILM 7UF 10% 920VDC RADIAL |
| Manufacturer | Vishay BC Components |
| Encapsulation | Tray |
| Quantity | 56 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay BC Components" |
| Tolerance | ±10% |
| Features | 85C/85% Humidity; Low ESR, Low ESL |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 1.083" (27.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 920V |
| Height - Seated (Max) | 1.524" (38.70mm) |
| Capacitance | 7 µF |
| ESR (Equivalent Series Resistance) | 5.6 mOhms |
| Size / Dimension | 1.260" L x 0.866" W (32.00mm x 22.00mm) |
|
