| Part number: | MKP1848550084K2 |

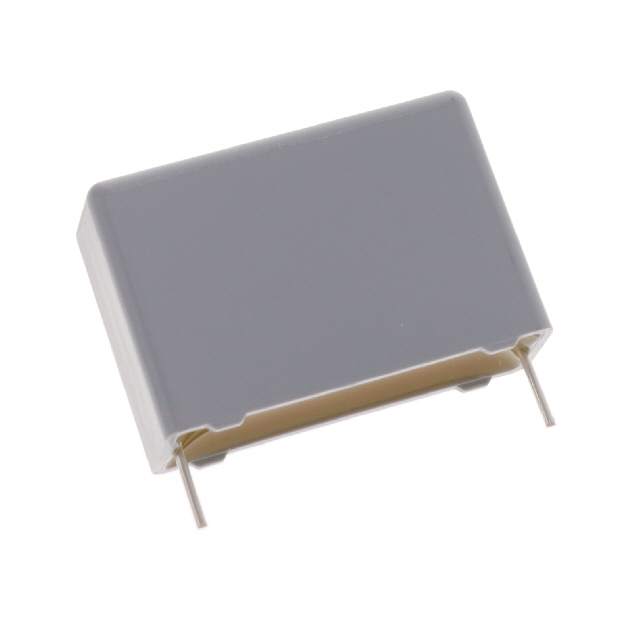

| Description: | MKP 5UF 5% 800VDC RADIAL PITCH 2 |
| Manufacturer | Vishay BC Components |
| Encapsulation | Bulk |
| Quantity | 80 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay BC Components" |
| Tolerance | ±5% |
| Features | Low ESR |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 105°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 1.083" (27.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 800V |
| Height - Seated (Max) | 1.106" (28.10mm) |
| Capacitance | 5 µF |
| ESR (Equivalent Series Resistance) | 12.5 mOhms |
| Size / Dimension | 1.260" L x 0.709" W (32.00mm x 18.00mm) |
|
