| Part number: | BTS7751GNUMA1 |
| Description: | IC HALF BRIDGE DRIVER PDSO28 |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Features | Status Flag |

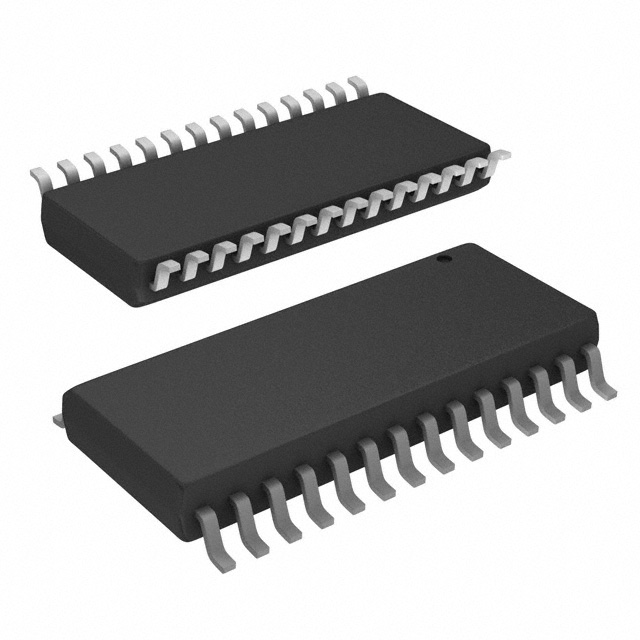

| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 1.8V ~ 42V |
| Rds On (Typ) | 45mOhm LS, 70mOhm HS |
| Applications | DC Motors, General Purpose |
| Current - Peak Output | 14A |
| Technology | DMOS |
| Voltage - Load | 1.8V ~ 42V |
| Supplier Device Package | P-DSO-28-14 |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Load Type | Inductive |
|
