| Part number: | GW JTLRS1.CM-K3LW-XX52-1-100-R33 |

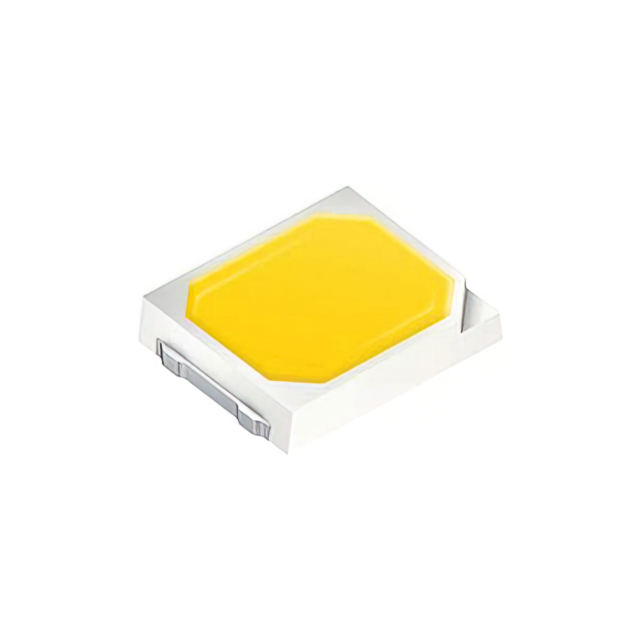

| Description: | LED DURIS E2835 WHITE 5700K 2835 |
| Manufacturer | ams-OSRAM USA INC. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 10000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ams-OSRAM USA INC." |
| Package / Case | 1113 (2835 Metric) |
| Color | White, Cool |
| Size / Dimension | 0.138" L x 0.110" W (3.50mm x 2.80mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 9.5V |
| Current - Test | 100mA |
| Viewing Angle | 120° |
| Current - Max | 150mA |
| Supplier Device Package | 2835 |
| Lumens/Watt @ Current - Test | 135 lm/W |
| Height - Seated (Max) | 0.030" (0.75mm) |
| CCT (K) | 5700K |
| CRI (Color Rendering Index) | 90 |
| Flux @ 25°C, Current - Test | 128lm (115lm ~ 140lm) |
| Thermal Resistance of Package | 13°C/W |
|
