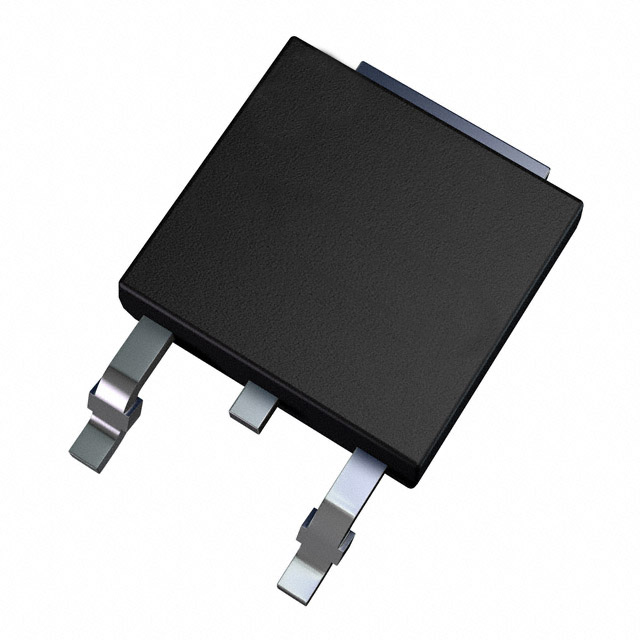

| Part number: | TK33S10N1L,LXHQ |
| Description: | MOSFET N-CH 100V 33A DPAK |
| Manufacturer | Toshiba Electronic Devices and Storage Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Toshiba Electronic Devices and Storage Corporation" |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | 175°C |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 33A (Ta) |
| Rds On (Max) @ Id, Vgs | 9.7mOhm @ 16.5A, 10V |
| Power Dissipation (Max) | 125W (Tc) |
| Vgs(th) (Max) @ Id | 2.5V @ 500µA |
| Supplier Device Package | DPAK+ |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 33 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2250 pF @ 10 V |
|
