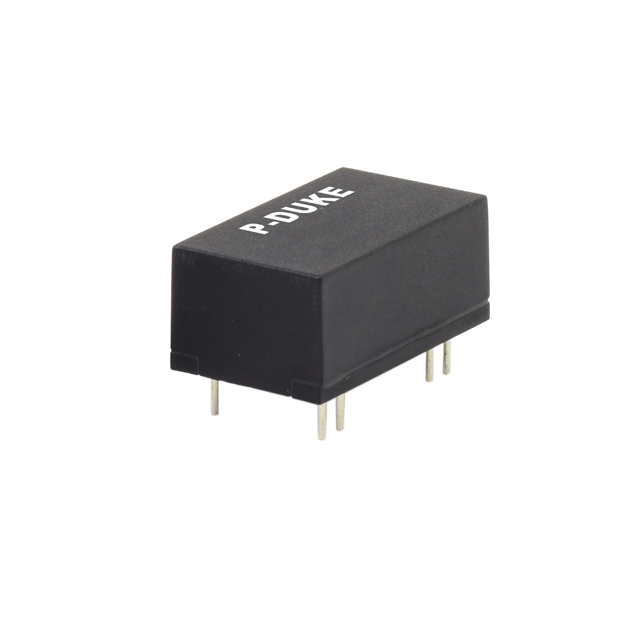

| Part number: | MPH02-24S05 |
| Description: | DC DC CONVERTER 5V 2W |
| Manufacturer | P-DUKE Technology |
| Encapsulation | Tube |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "P-DUKE Technology" |
| Features | Remote On/Off |
| Package / Case | 16-DIP Module, 7 Leads |
| Size / Dimension | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Applications | ITE (Commercial), Medical |
| Voltage - Input (Max) | 36V |
| Approval Agency | CB, CE, cURus |
| Efficiency | 79% |
| Current - Output (Max) | 400mA |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 5V |
| Power (Watts) | 2 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 5 kV |
|
