| Part number: | IL-FPR-U32S-HF-N1 |

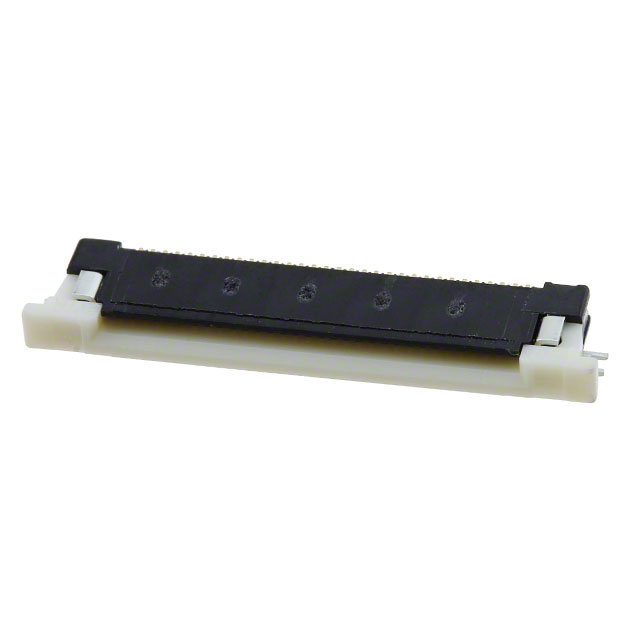

| Description: | CONN FPC TOP 32POS 0.5MM R/A |
| Manufacturer | JAE Electronics |
| Encapsulation | Tray |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "JAE Electronics" |
| Features | Zero Insertion Force (ZIF) |
| Contact Finish | Gold |
| Voltage Rating | 50V |
| Current Rating (Amps) | 0.5A per Contact |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 32 |
| Pitch | 0.020" (0.50mm) |
| Operating Temperature | -40°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.075" (1.90mm) |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Contact Material | Copper Alloy |
| FFC, FCB Thickness | 0.30mm |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Cable End Type | Tapered |
| Housing Color | Black |
| Actuator Color | White |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Top |
|
