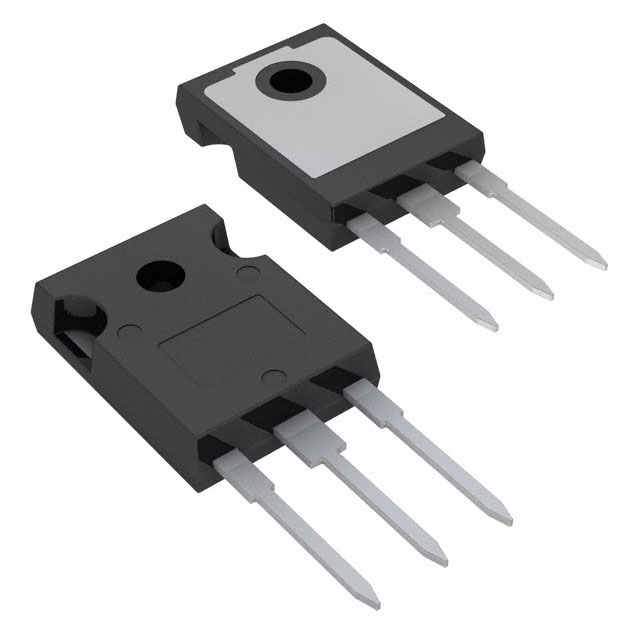

| Part number: | IRGP4068D-EPBF |
| Description: | IGBT TRENCH 600V 96A TO247AD |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.14V @ 15V, 48A |
| Supplier Device Package | TO-247AD |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | -/145ns |
| Switching Energy | 1.28mJ (off) |
| Test Condition | 400V, 48A, 10Ohm, 15V |
| Gate Charge | 95 nC |
| Current - Collector (Ic) (Max) | 96 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 144 A |
| Power - Max | 330 W |
|
