| Part number: | IRGS4055PBF |
| Description: | IGBT 300V 110A 255W D2PAK |
| Manufacturer | IR (Infineon Technologies) |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "IR (Infineon Technologies)" |

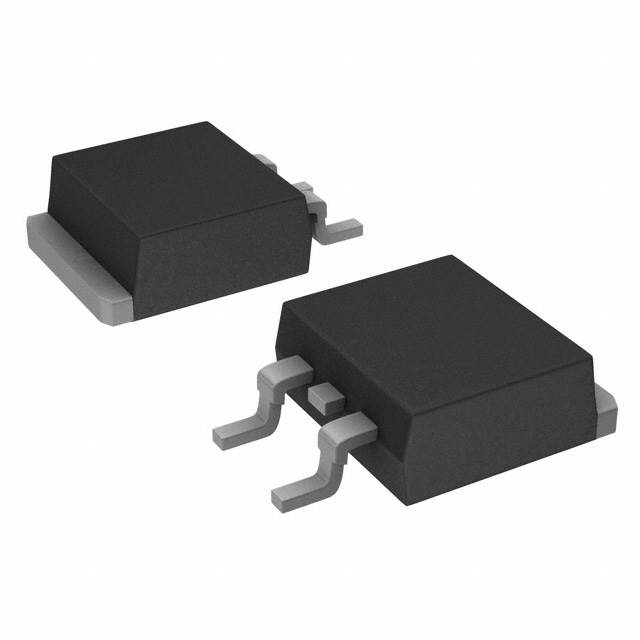

| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 110A |
| Supplier Device Package | D2PAK |
| IGBT Type | Trench |
| Td (on/off) @ 25°C | 44ns/245ns |
| Test Condition | 180V, 35A, 10Ohm |
| Gate Charge | 132 nC |
| Current - Collector (Ic) (Max) | 110 A |
| Voltage - Collector Emitter Breakdown (Max) | 300 V |
| Power - Max | 255 W |
|
