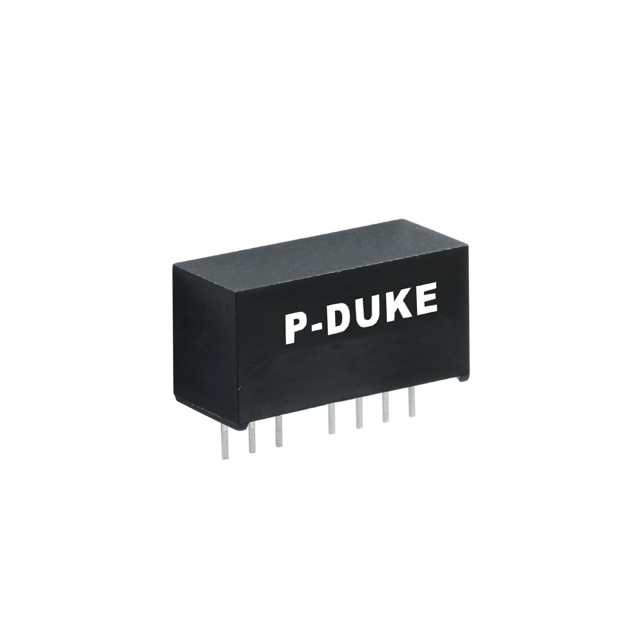

| Part number: | EDL03-05S05 |
| Description: | DC DC CONVERTER 5V 3W |
| Manufacturer | P-DUKE Technology |
| Encapsulation | Tube |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "P-DUKE Technology" |
| Features | Remote On/Off |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 13.2V |
| Approval Agency | CE |
| Efficiency | 78% |
| Current - Output (Max) | 600mA |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 5V |
| Power (Watts) | 3 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.6 kV |
|
