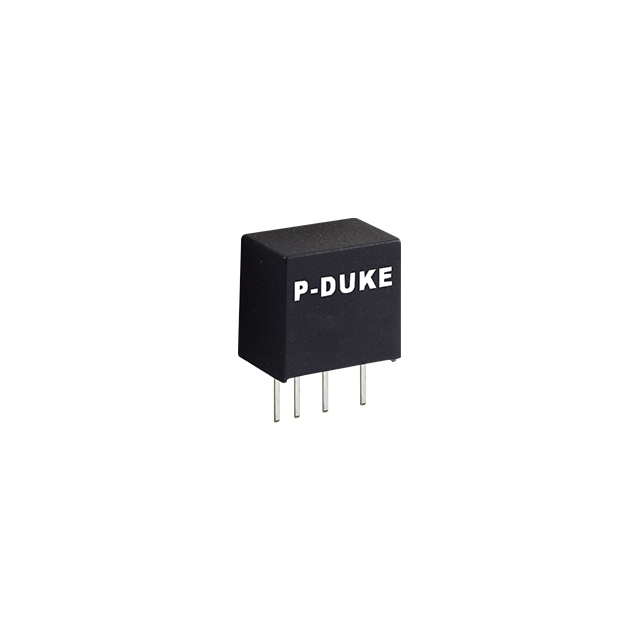

| Part number: | UDH03-24S24 |
| Description: | DC DC CONVERTER 24V 3W |
| Manufacturer | P-DUKE Technology |
| Encapsulation | Tube |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "P-DUKE Technology" |
| Package / Case | 5-SIP Module, 4 Leads |
| Size / Dimension | 0.47" L x 0.30" W x 0.43" H (11.9mm x 7.7mm x 11.0mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Approval Agency | CE |
| Efficiency | 83% |
| Current - Output (Max) | 125mA |
| Voltage - Input (Min) | 18V |
| Voltage - Output 1 | 24V |
| Power (Watts) | 3 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.6 kV |
|
