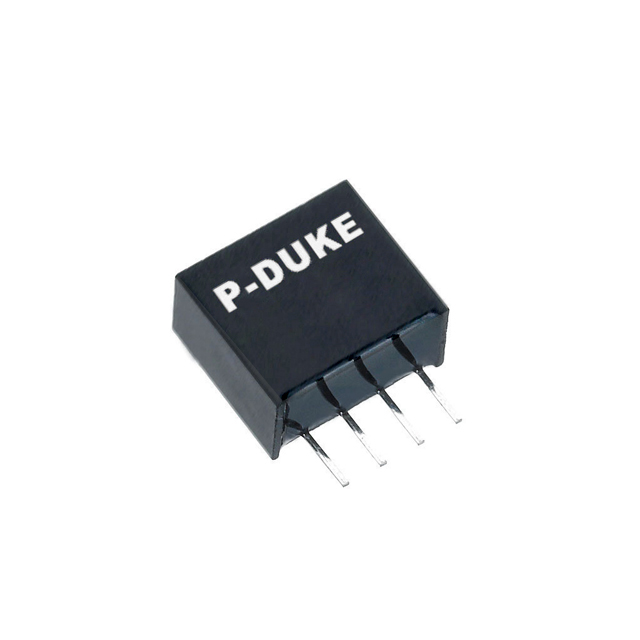

| Part number: | EUR01-24S15 |
| Description: | DC DC CONVERTER 15V 990MW |
| Manufacturer | P-DUKE Technology |
| Encapsulation | Tube |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "P-DUKE Technology" |
| Package / Case | 4-SIP Module |
| Size / Dimension | 0.45" L x 0.24" W x 0.39" H (11.5mm x 6.0mm x 10.0mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 26.4V |
| Approval Agency | CE |
| Efficiency | 80% |
| Current - Output (Max) | 66mA |
| Voltage - Input (Min) | 21.6V |
| Voltage - Output 1 | 15V |
| Power (Watts) | 990 mW |
| Number of Outputs | 1 |
| Voltage - Isolation | 1.6 kV |
|
