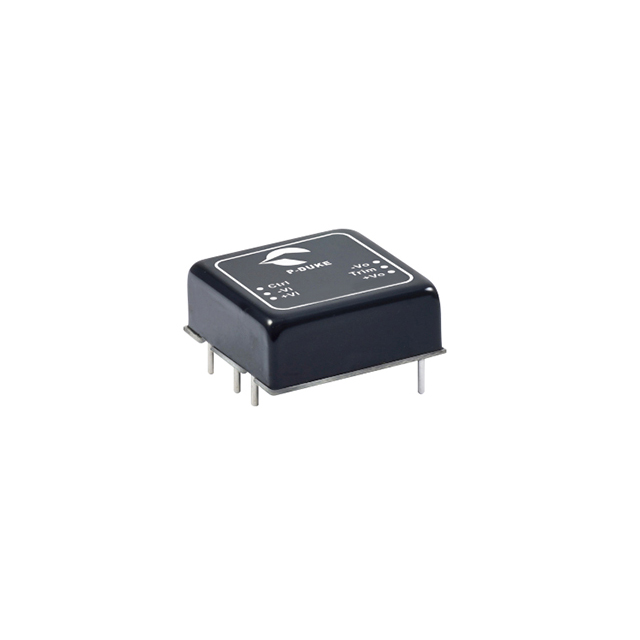

| Part number: | RCD15-24S24W |
| Description: | DC DC CONVERTER 24V 15W |
| Manufacturer | P-DUKE Technology |
| Encapsulation | Tube |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "P-DUKE Technology" |
| Features | Adjustable Output, Remote On/Off |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) |
| Mounting Type | Through Hole |
| Type | Isolated Module |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 36V |
| Approval Agency | CB, CE, cURus |
| Efficiency | 91% |
| Current - Output (Max) | 625mA |
| Voltage - Input (Min) | 9V |
| Voltage - Output 1 | 24V |
| Control Features | Enable, Active Low |
| Power (Watts) | 15 W |
| Number of Outputs | 1 |
| Voltage - Isolation | 3 kV |
|
