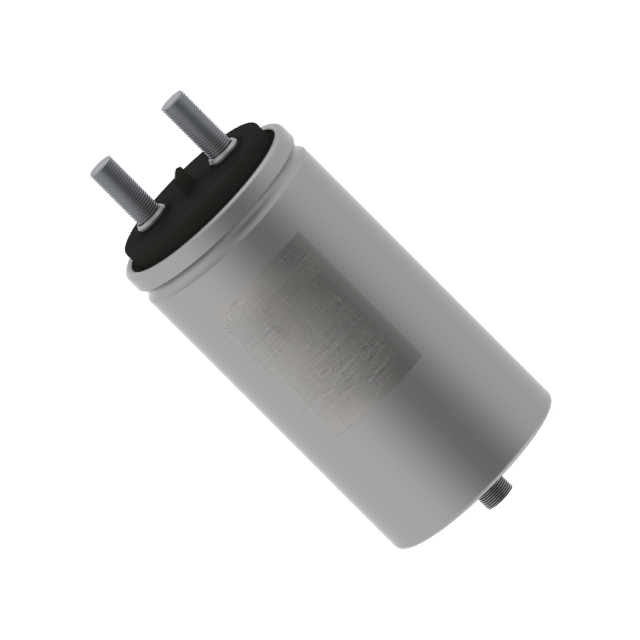

| Part number: | C44APFP4300ZB0J |
| Description: | CAP FILM 3UF 5% 1.2KVDC RADIAL |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Box |
| Quantity | 50 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±5% |
| Package / Case | Radial, Can |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 0.878" (22.30mm) |
| Termination | Threaded, Male |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 500V |
| Voltage Rating - DC | 1200V (1.2kV) |
| Height - Seated (Max) | 3.071" (78.00mm) |
| Capacitance | 3 µF |
| ESR (Equivalent Series Resistance) | 2 mOhms |
| Size / Dimension | 1.969" Dia (50.00mm) |
|
