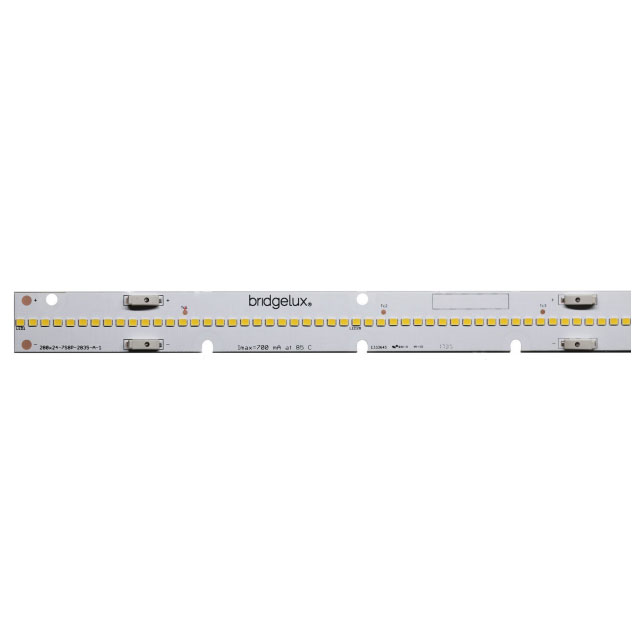

| Part number: | BXEB-L1120Z-40E8000-C-D3 |
| Description: | LED MOD EB SER WH LNR STRP 4000K |
| Manufacturer | Bridgelux, Inc. |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Bridgelux, Inc." |
| Color | White, Neutral |
| Size / Dimension | 1120.00mm L x 24.00mm W |
| Type | LED Module |
| Configuration | Linear Light Strip |
| Voltage - Forward (Vf) (Typ) | 38.4V |
| Height | 6.10mm |
| Current - Test | 1.4A |
| Viewing Angle | 120° |
| Lens Type | Flat |
| Current - Max | 2.8A |
| Lumens/Watt @ Current - Test | 194 lm/W |
| CCT (K) | 4000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 80 |
| Temperature - Test | 25°C |
| Luminous Flux @ Current/Temperature | 10440lm |
|
