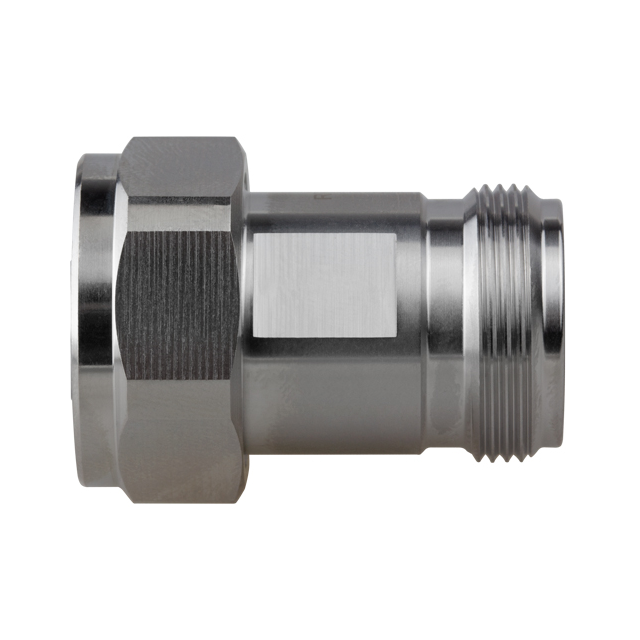

| Part number: | RFD-4195-1950 |
| Description: | 4.1/9.5 MALE-4.1/9.5 FEMALE |
| Manufacturer | RF Industries |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "RF Industries" |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | 4.1/9.5 Plug, Male Pin |
| Convert To (Adapter End) | 4.1/9.5 Jack, Female Socket |
| Operating Temperature | -55°C ~ 155°C |
| Insertion Loss | 0.05dB |
| Fastening Type | Threaded, Threaded |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Adapter Series | 4.1/9.5 to 4.1/9.5 |
| Adapter Type | Plug to Jack |
| Center Gender | Female to Male |
| Conversion Type | Same Series |
| Body Material | Brass |
| Mating Cycles | 500 |
| Center Contact Material | Phosphor Bronze |
| Body Finish | White Bronze |
| Center Contact Plating | Silver |
| Frequency - Max | 3 GHz |
|
