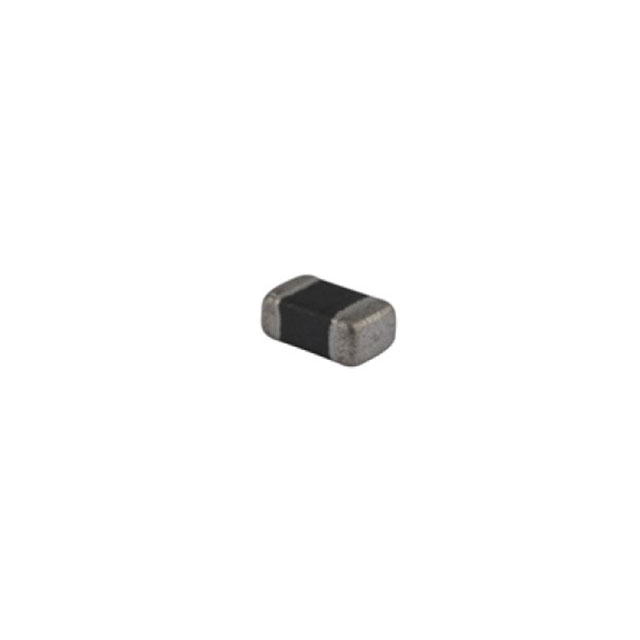

| Part number: | MCLA2012V1-R100-R |
| Description: | FIXED IND 100NH 250MA 200MOHM SM |
| Manufacturer | PowerStor (Eaton) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 4000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PowerStor (Eaton)" |
| Tolerance | ±10% |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Multilayer |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | 20 @ 25MHz |
| Frequency - Self Resonant | 235MHz |
| Ratings | AEC-Q200 |
| Inductance Frequency - Test | 25 MHz |
| Supplier Device Package | 0805 |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Inductance | 100 nH |
| Current Rating (Amps) | 250 mA |
|
