| Part number: | E36D451HPN222MDA5U |

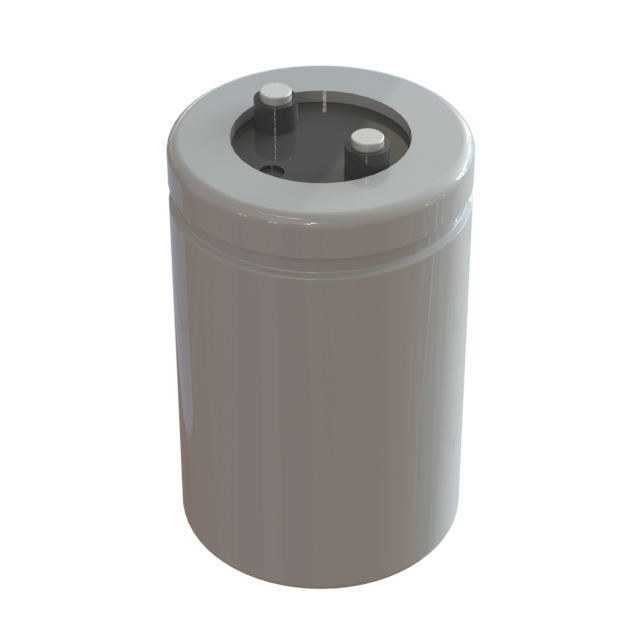

| Description: | CAP ALUM 2200UF 20% 450V SCREW |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.126" (28.60mm) |
| ESR (Equivalent Series Resistance) | 114.5mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Capacitance | 2200 µF |
| Voltage - Rated | 450 V |
| Ripple Current @ Low Frequency | 6.86 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.604 A @ 3 kHz |
|
