| Part number: | EKMM201VSN821MQ45U |

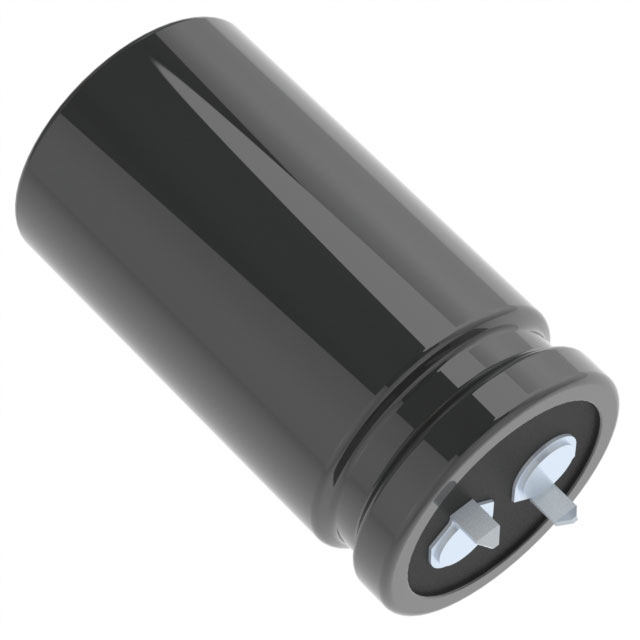

| Description: | CAP ALUM 820UF 20% 200V SNAP |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.000" Dia (25.40mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Lead Spacing | 0.394" (10.00mm) |
| ESR (Equivalent Series Resistance) | 303mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Capacitance | 820 µF |
| Voltage - Rated | 200 V |
| Ripple Current @ Low Frequency | 2.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.06 A @ 50 kHz |
|
