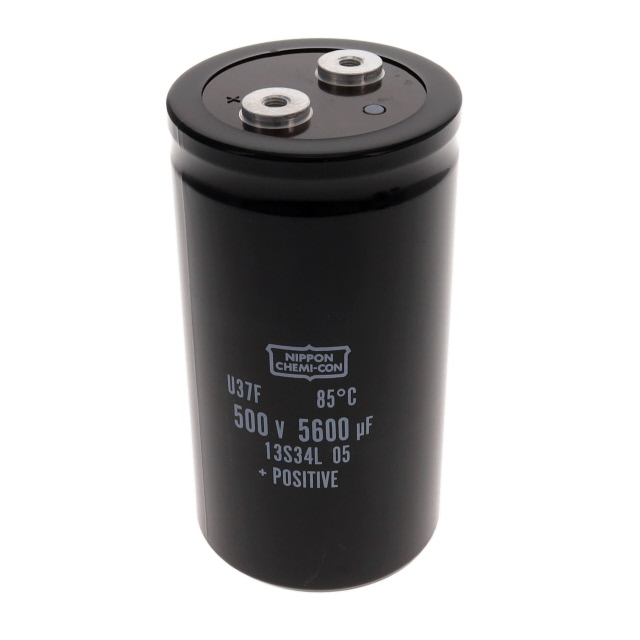

| Part number: | E37F501CPN562MEE3U |
| Description: | CAP ALUM 5600UF 20% 500V SCREW |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 16 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Polarization | Polar |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 85°C |
| Applications | General Purpose |
| Lead Spacing | 1.252" (31.80mm) |
| ESR (Equivalent Series Resistance) | 20mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Height - Seated (Max) | 5.669" (144.00mm) |
| Capacitance | 5600 µF |
| Voltage - Rated | 500 V |
| Ripple Current @ Low Frequency | 17.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 24.111 A @ 10 kHz |
|
