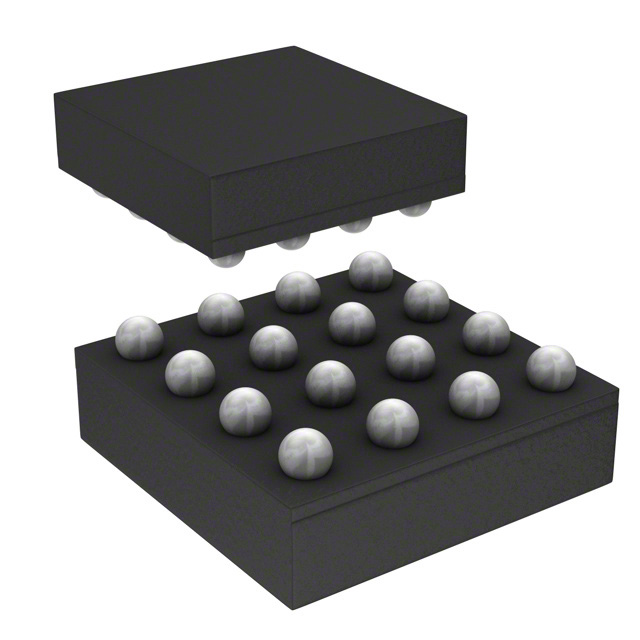

| Part number: | TMUX1575YCJR |
| Description: | IC SWITCH SPDT X 4 8OHM 16WLCSP |
| Manufacturer | Texas Instruments |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |
| Package / Case | 16-BGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 8Ohm |
| -3db Bandwidth | 1.8GHz |
| Supplier Device Package | 16-WLCSP (1.34x1.34) |
| Voltage - Supply, Single (V+) | 1.08V ~ 3.6V |
| Charge Injection | 5pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Switch Time (Ton, Toff) (Max) | 130ns, 60ns |
| Channel Capacitance (CS(off), CD(off)) | 3.5pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Number of Circuits | 4 |
|
