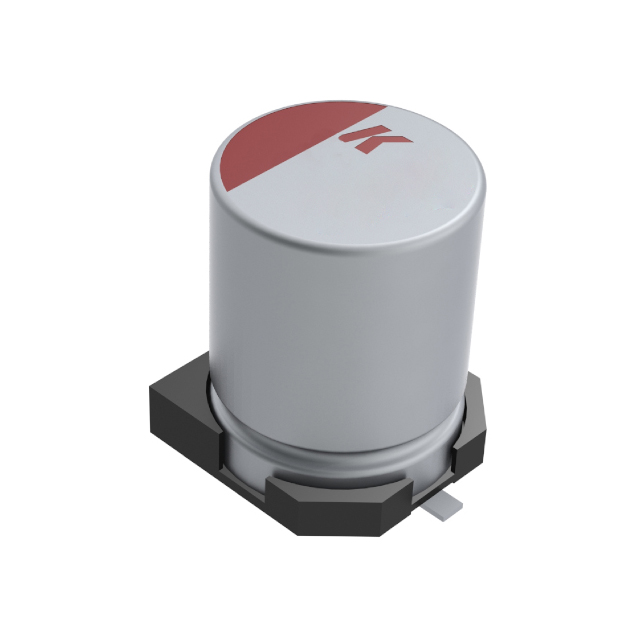

| Part number: | A766KE567M0GLAE022 |
| Description: | CAP ALUM POLY 560UF 20% 4V SMD |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Capacitance | 560 µF |
| Voltage - Rated | 4 V |
| Ripple Current @ Low Frequency | 161 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.22 A @ 100 kHz |
|
