| Part number: | A766EB157M0GLAE022 |

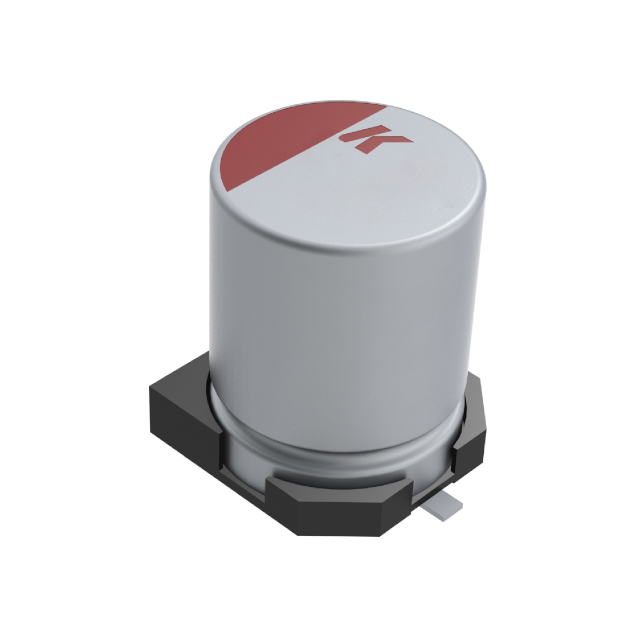

| Description: | CAP ALUM POLY 150UF 20% 4V SMD |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Capacitance | 150 µF |
| Voltage - Rated | 4 V |
| Ripple Current @ Low Frequency | 128.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.57 A @ 100 kHz |
|
