| Part number: | BUK7E3R5-60E,127 |
| Description: | TRANSISTOR >30MHZ |
| Manufacturer | NXP Semiconductors |
| Encapsulation | Bulk |
| Quantity | 316 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "NXP Semiconductors" |

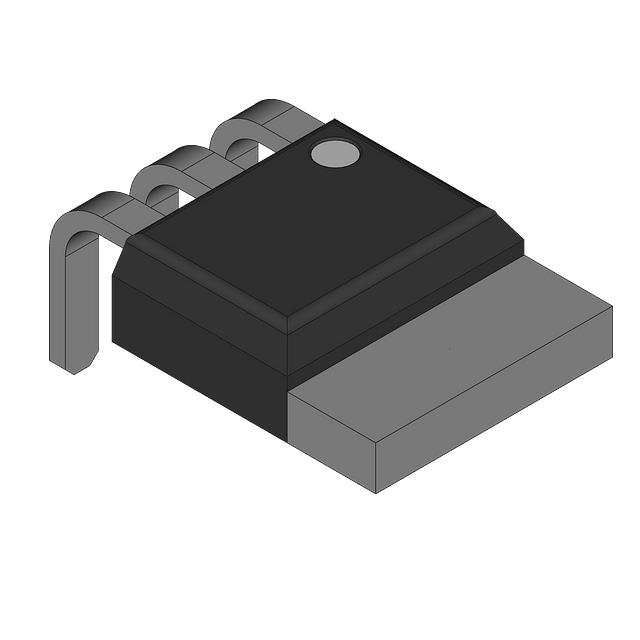

| Package / Case | TO-262-3 Long Leads, I2PAK, TO-262AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 120A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.5mOhm @ 25A, 10V |
| Power Dissipation (Max) | 293W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Supplier Device Package | I2PAK |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 114 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 8920 pF @ 25 V |
| Qualification | AEC-Q101 |
|
