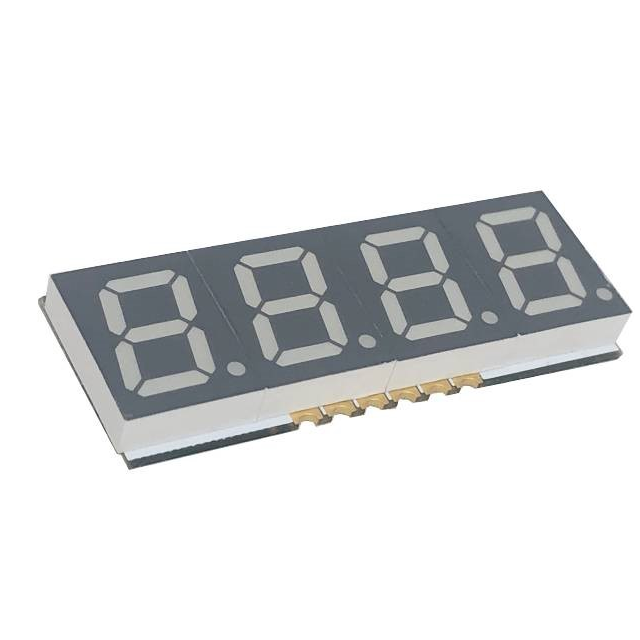

| Part number: | SMA394LY G/W |
| Description: | DISP 28SEG 0.39 QUAD YELLOW 12DI |
| Manufacturer | American Opto Plus LED Corp. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Opto Plus LED Corp." |
| Package / Case | 12-DIP |
| Color | Yellow |
| Display Type | 7-Segment |
| Size / Dimension | 0.591" H x 1.543" W x 0.150" D (15.00mm x 39.20mm x 3.80mm) |
| Number of Characters | 4 |
| Millicandela Rating | 30mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.39" (10.00mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 593nm |
| Power Dissipation (Max) | 70mW |
|
