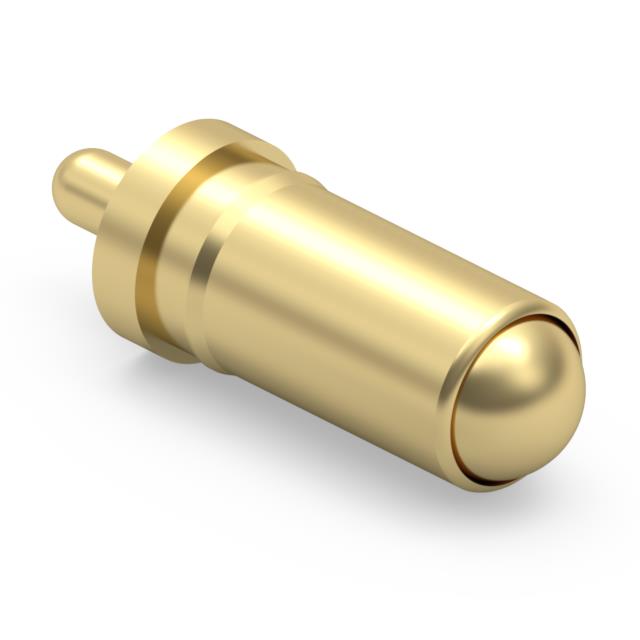

| Part number: | 7945-1-15-20-09-14-11-0 |
| Description: | SPRING LOADED PIN WITH SOLDERTAI |
| Manufacturer | Mill-Max |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mill-Max" |
| Contact Finish | Gold |
| Current Rating (Amps) | 5.2A |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Material | Brass Alloy |
| Mating Cycles | 1000000 |
| Maximum Working Height | 0.266" (6.76mm) |
| Recommended Working Height | 0.251" (6.38mm) |
| Minimum Working Height | 0.236" (6.00mm) |
| Pad Layout Dimension | Circular - 0.118" (3mm) (TH) |
| Plunger Size | 0.091" (2.31mm) Dia |
| Operating Force - Initial | 30gf |
| Operating Force - Mid Compression | 55gf |
|
