| Part number: | ISOW7841FAQDWEQ1 |
| Description: | AUTO RISO DIG. ISOLATOR WITH INT |
| Manufacturer | Texas Instruments |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Texas Instruments" |

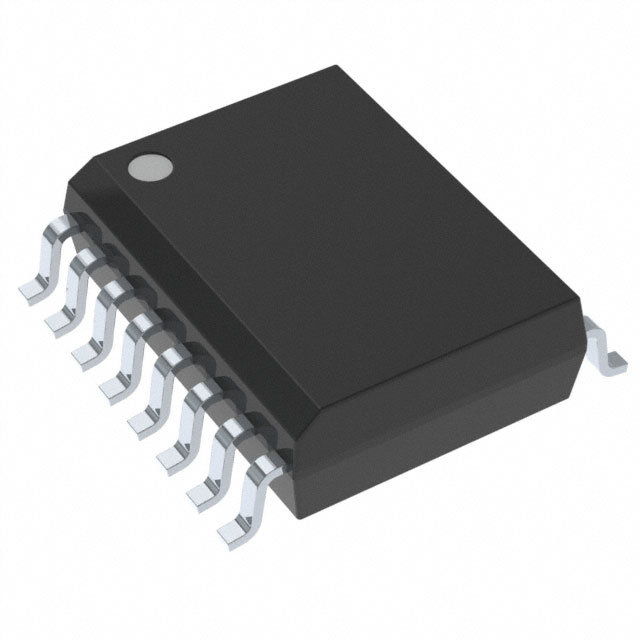

| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 5.5V |
| Data Rate | 100Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 5000Vrms |
| Inputs - Side 1/Side 2 | 3/1 |
| Supplier Device Package | 16-SOIC |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Common Mode Transient Immunity (Min) | 100kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 17.6ns, 17.6ns |
| Isolated Power | Yes |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 4.7ns |
| Grade | Automotive |
| Number of Channels | 4 |
| Qualification | AEC-Q100 |
|
