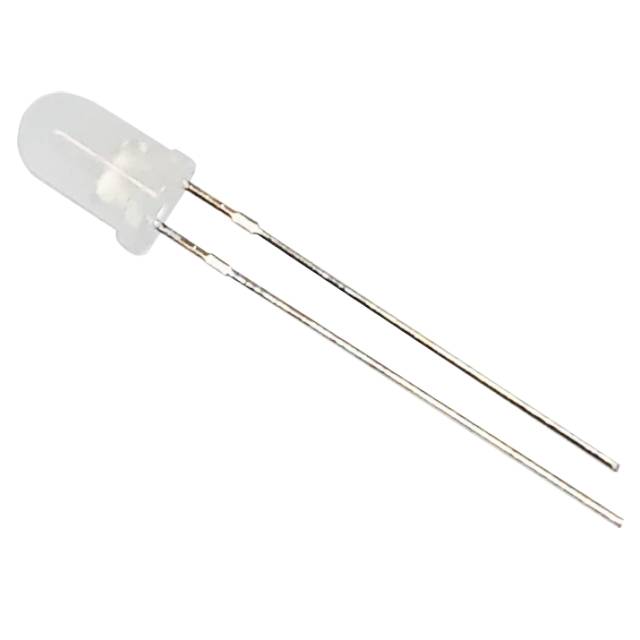

| Part number: | L517GYW |
| Description: | LED GRN/YLW DIFFUSED T/H |
| Manufacturer | American Opto Plus LED Corp. |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Opto Plus LED Corp." |
| Package / Case | Radial |
| Color | Green, Yellow |
| Size / Dimension | 5.00mm Dia |
| Mounting Type | Through Hole |
| Millicandela Rating | 15mcd Green, 15mcd Yellow |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.1V Yellow |
| Lens Color | White |
| Current - Test | 30mA Green, 30mA Yellow |
| Viewing Angle | 60° |
| Height (Max) | 9.60mm |
| Wavelength - Dominant | 565nm Green, 585nm Yellow |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
|
