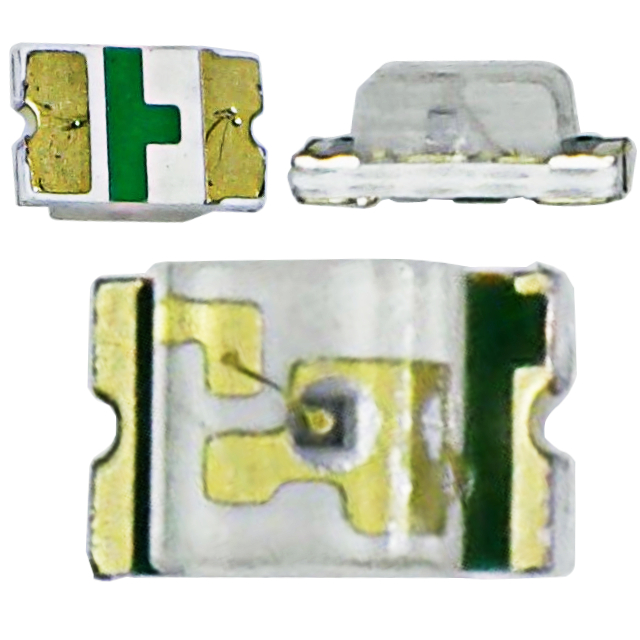

| Part number: | L170B-EC-TR |
| Description: | LED RED CLEAR 0805 SMD |
| Manufacturer | American Opto Plus LED Corp. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "American Opto Plus LED Corp." |
| Package / Case | 0805 (2012 Metric) |
| Color | Red |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 90mcd |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Height (Max) | 0.90mm |
| Wavelength - Peak | 640nm |
| Wavelength - Dominant | 630nm |
| Supplier Device Package | 0805 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.30mm x 1.25mm |
|
