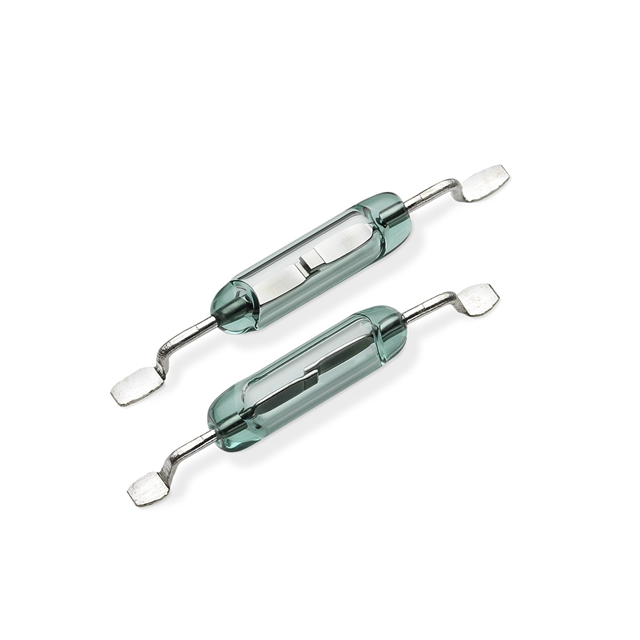

| Part number: | MISM-7B-15-20 |
| Description: | SWITCH REED SPST-NO 180MA 120V |
| Manufacturer | Wickmann / Littelfuse |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Wickmann / Littelfuse" |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Type | Glass Body Reed |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Gull Wing |
| Length - Overall | 0.540" (13.72mm) |
| Power - Rated | 10W |
| Height Above Board | 0.090" (2.28mm) |
| Current - Switching | 180mA (AC), 250mA (DC) |
| Voltage - Switching DC | 170 V |
| Operate Time | 450 µs |
| Release Time | 0.2 ms |
| Size - Body | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) |
| Operate Range | 15 ~ 20AT |
| Current - Carry | 500mA (DC) |
| Voltage - Switching AC | 120 V |
| Capacitance | 0.3 pF |
|
