| Part number: | 9851 WH005 |

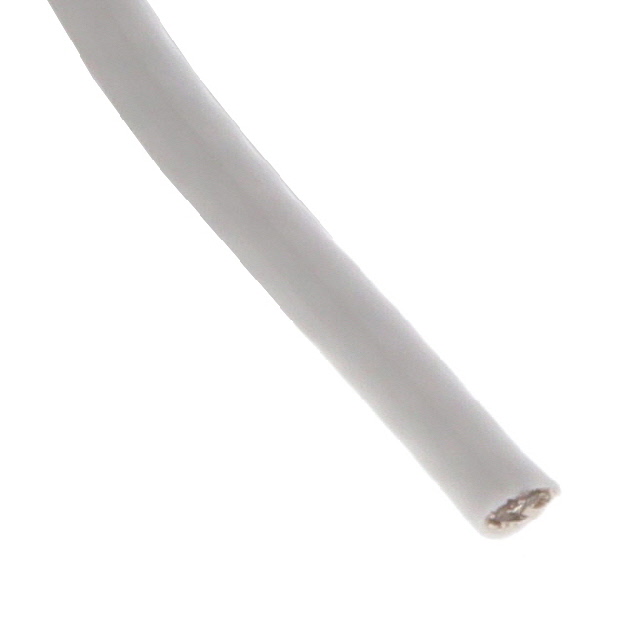

| Description: | ALPHA ESSENTIALS COAXIAL CABLE 3 |
| Manufacturer | Alpha Wire |
| Encapsulation | Spool |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Alpha Wire" |
| Features | Non-Magnetic |
| Length | 100.0' (30.48m) |
| Wire Gauge | 30 AWG |
| Jacket (Insulation) Material | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Strand | 7 Strands / 38 AWG |
| Operating Temperature | -70°C ~ 200°C |
| Cable Type | Coaxial |
| Jacket (Insulation) Diameter | 0.070" (1.78mm) |
| Shield Coverage | 95% |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| Conductor Material | Copper, Silver Coated |
| Jacket Color | White |
| VoP, Velocity of Propagation | 70 |
| Impedance | 50 Ohms |
|
