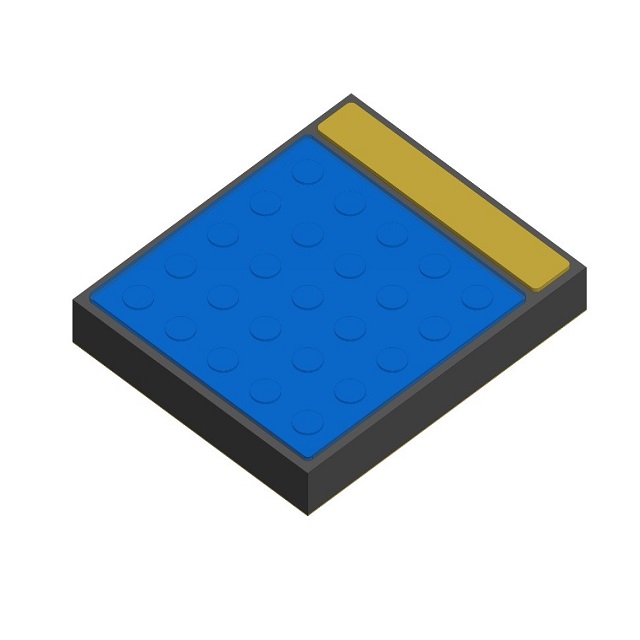

| Part number: | LA SG08WP4 |
| Description: | LED GREEN 528NM DIE |
| Manufacturer | Light-Avenue |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Light-Avenue" |
| Package / Case | Die |
| Color | Green |
| Wavelength | 528nm |
| Size / Dimension | 0.007" L x 0.007" W (0.19mm x 0.19mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 2.7V |
| Current - Test | 10mA |
| Viewing Angle | 120° |
| Current - Max | 50mA |
| Supplier Device Package | Die |
| Lumens/Watt @ Current - Test | 70 lm/W |
| Height - Seated (Max) | 0.005" (0.14mm) |
| Temperature - Test | 25°C |
|
