| Part number: | 1-1393102-9 |

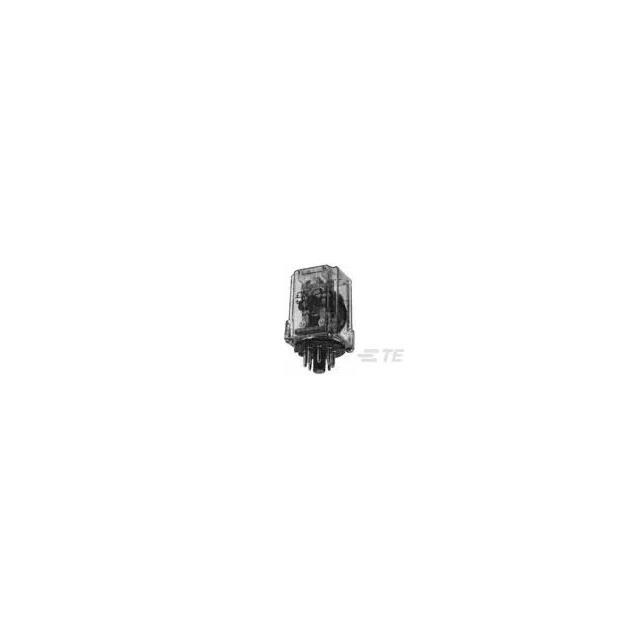

| Description: | RELAY GEN PURPOSE SPDT 10A 24V |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TE Connectivity Potter & Brumfield Relays" |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Operating Temperature | -45°C ~ 70°C |
| Termination Style | Plug In, 8 Pin (Octal) |
| Relay Type | General Purpose |
| Coil Current | 51 mA |
| Coil Type | Non Latching |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 240VAC - Max |
| Must Operate Voltage | 18 VDC |
| Coil Resistance | 472 Ohms |
| Coil Insulation | Class B |
|
