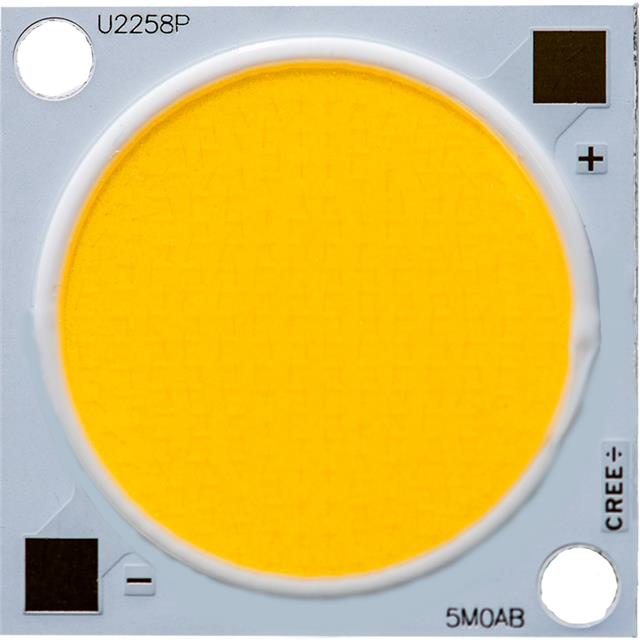

| Part number: | CMU2258-0000-000P0U0A27G |
| Description: | LED COB XLAMP WARM WHT SQU 2700K |
| Manufacturer | Cree LED |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Cree LED" |
| Color | White, Warm |
| Size / Dimension | 28.00mm L x 28.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 50.5V |
| Height | 1.50mm |
| Current - Test | 1.08A |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 2.88A |
| Lumens/Watt @ Current - Test | 133 lm/W |
| CCT (K) | 2700K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 22.00mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 7227lm (Typ) |
|
