| Part number: | CMU2236-0000-000N0B0A50E |

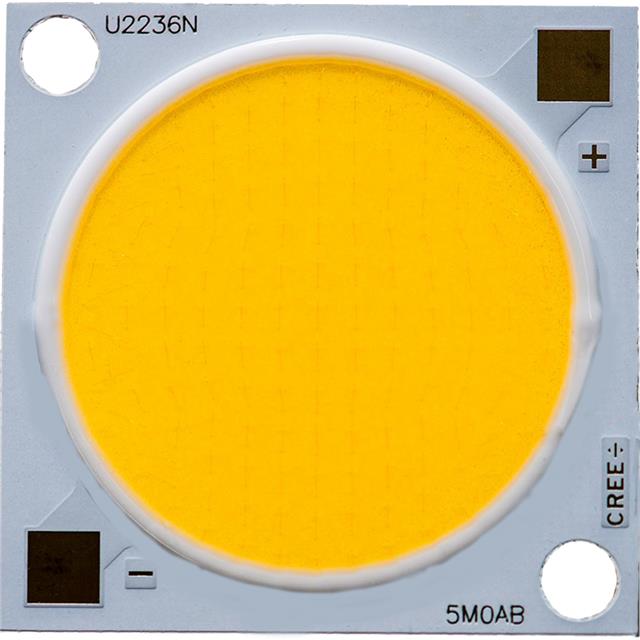

| Description: | LED XLAMP COOL WHITE 5000K |
| Manufacturer | Cree LED |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Cree LED" |
| Package / Case | 2-SMD, No Lead |
| Color | White, Cool |
| Size / Dimension | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
| Mounting Type | Surface Mount, Right Angle |
| Voltage - Forward (Vf) (Typ) | 33.7V |
| Current - Test | 990mA |
| Viewing Angle | 115° |
| Current - Max | 2.64A |
| Lumens/Watt @ Current - Test | 186 lm/W |
| Height - Seated (Max) | 0.067" (1.70mm) |
| CCT (K) | 5000K 5-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 70 |
| Flux @ 85°C, Current - Test | 6194lm (Typ) |
|
