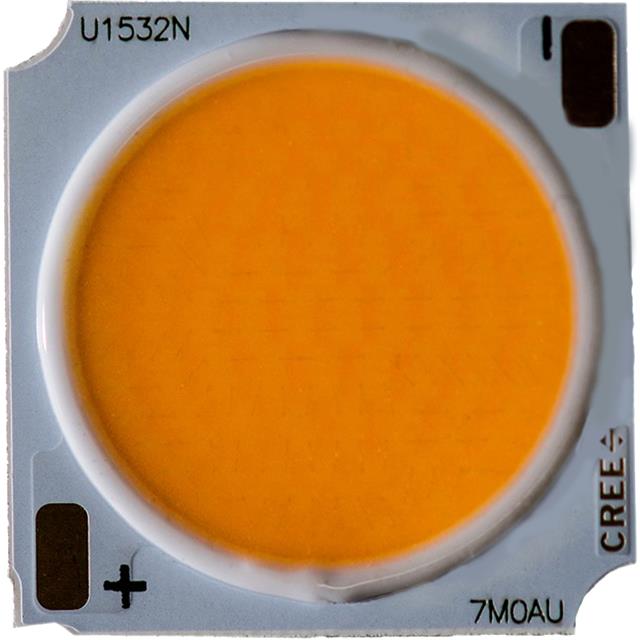

| Part number: | CMU1532-0000-000N0U0A31Q |
| Description: | LED COB XLAMP WARM WHT SQ 3100K |
| Manufacturer | Cree LED |
| Encapsulation | Tray |
| Quantity | 225 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Cree LED" |
| Color | White, Warm |
| Size / Dimension | 19.00mm L x 19.00mm W |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Voltage - Forward (Vf) (Typ) | 33.7V |
| Height | 1.50mm |
| Current - Test | 900mA |
| Viewing Angle | 115° |
| Lens Type | Flat |
| Current - Max | 2.4A |
| Lumens/Watt @ Current - Test | 130 lm/W |
| CCT (K) | 3100K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Light Emitting Surface (LES) | 14.50mm Dia |
| Temperature - Test | 85°C |
| Luminous Flux @ Current/Temperature | 3931lm (Typ) |
|
