| Part number: | CMU1010-0000-000N0U0A30U |

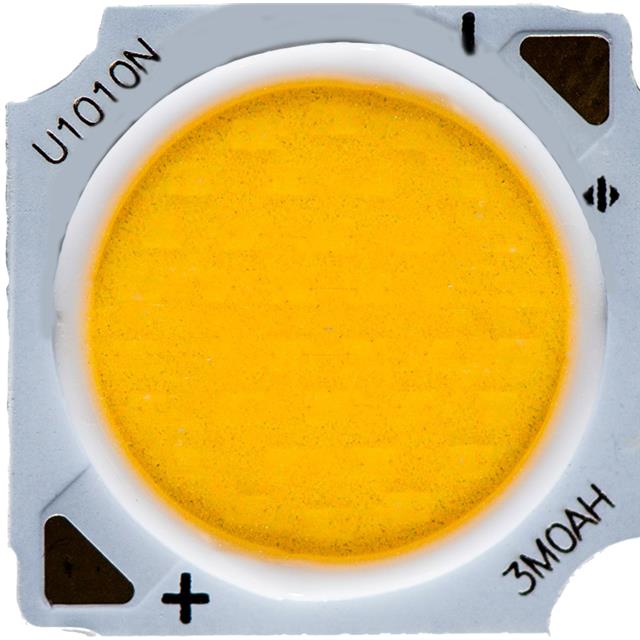

| Description: | LED XLAMP WARM WHT 3000K |
| Manufacturer | Cree LED |
| Encapsulation | Tray |
| Quantity | 400 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Cree LED" |
| Package / Case | 2-SMD, No Lead |
| Color | White, Warm |
| Size / Dimension | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Mounting Type | Surface Mount |
| Voltage - Forward (Vf) (Typ) | 33.7V |
| Current - Test | 270mA |
| Viewing Angle | 115° |
| Current - Max | 720mA |
| Lumens/Watt @ Current - Test | 129 lm/W |
| Height - Seated (Max) | 0.067" (1.70mm) |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| CRI (Color Rendering Index) | 90 |
| Flux @ 85°C, Current - Test | 1177lm (Typ) |
|
