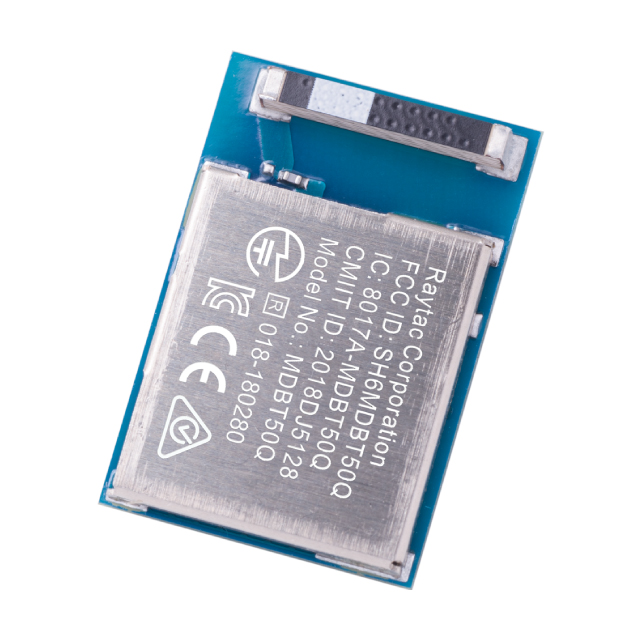

| Part number: | MDBT50Q-1MV2 |
| Description: | RF TXRX MOD BT CHIP SMD NORDIC |
| Manufacturer | Raytac |
| Encapsulation | Bag |
| Quantity | 5 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Raytac" |
| Package / Case | 61-SMD Module |
| Sensitivity | -103dBm |
| Mounting Type | Surface Mount |
| Frequency | 2.36GHz ~ 2.5GHz |
| Memory Size | 1MB Flash, 256kB RAM |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.7V ~ 5.5V |
| Power - Output | 8dBm |
| Data Rate | 2Mbps |
| Protocol | Bluetooth v5.4, Zigbee® |
| Current - Receiving | 3.7mA ~ 11.1mA |
| Current - Transmitting | 2.7mA ~ 32.7mA |
| Antenna Type | Integrated, Chip |
| Utilized IC / Part | nRF52840 |
| RF Family/Standard | 802.15.4, Bluetooth |
| Serial Interfaces | ADC, GPIO, I2C, I2S, SPI, PDM, PWM, UART, USB |
| DigiKey Programmable | Not Verified |
|
