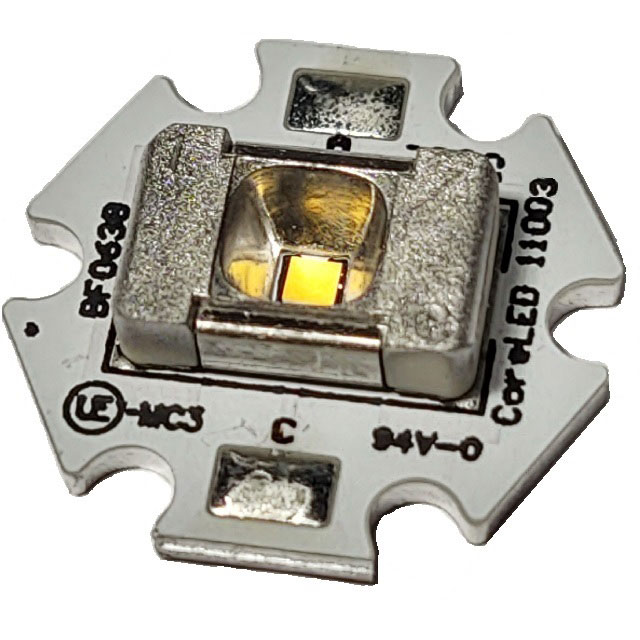

| Part number: | 11003-STAR-E17 |
| Description: | LED COB SMR STARBOARD |
| Manufacturer | CoreLED Systems LLC |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CoreLED Systems LLC" |
| Size / Dimension | 20.00mm Dia |
| Type | Chip On Board (COB) |
| Configuration | Starboard |
| Voltage - Forward (Vf) (Typ) | 3V |
| Height | 1.57mm |
| Current - Test | 350mA |
| Viewing Angle | 56° |
| Lens Type | Flat |
| Current - Max | 700mA |
| Lumens/Watt @ Current - Test | 141 lm/W |
| CRI (Color Rendering Index) | 82 (Typ) |
| Light Emitting Surface (LES) | 1.70mm L x 1.70mm W |
| Luminous Flux @ Current/Temperature | 148lm (Typ) |
|
