| Part number: | ELVH-100A-HAND-I-PSA4 |

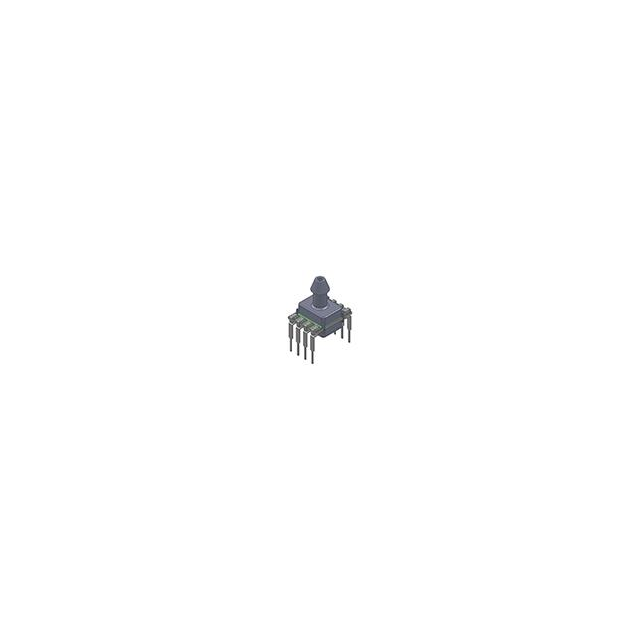

| Description: | SENSOR 100.08PSIA 0.19" 14BIT |
| Manufacturer | Amphenol All Sensors |
| Encapsulation | Tray |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Amphenol All Sensors" |
| Features | Temperature Compensated |
| Package / Case | 8-DIP (0.524", 13.30mm), Top Port |
| Output Type | SPI |
| Mounting Type | Through Hole |
| Output | 14 b |
| Operating Pressure | 100PSI (689.48kPa) |
| Pressure Type | Absolute |
| Accuracy | ±0.25% |
| Operating Temperature | -20°C ~ 85°C |
| Termination Style | PC Pin |
| Voltage - Supply | 2.7V ~ 5.5V |
| Port Size | Male - 0.19" (4.93mm) Tube |
| Port Style | Barbed |
| Maximum Pressure | 250.05PSI (1724kPa) |
|
