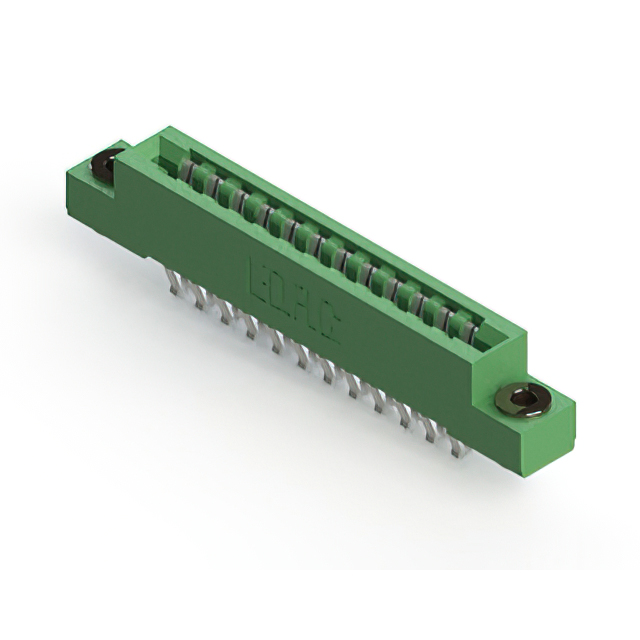

| Part number: | 807-024-460-203 |
| Description: | CONN EDGE DUAL FMALE 24POS 0.156 |
| Manufacturer | EDAC Inc. |
| Encapsulation | Bulk |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "EDAC Inc." |
| Features | Card Extender |
| Gender | Female |
| Contact Finish | Tin |
| Color | Green |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 24 |
| Pitch | 0.156" (3.96mm) |
| Operating Temperature | -40°C ~ 125°C |
| Read Out | Dual |
| Contact Type | Semi Bellows |
| Card Type | Non Specified - Dual Edge |
| Card Thickness | 0.054" ~ 0.070" (1.37mm ~ 1.78mm) |
| Flange Feature | Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia |
| Termination | Solder |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Contact Material | Copper Alloy |
| Number of Positions/Bay/Row | 12 |
| Number of Rows | 2 |
| Termination Rows | 2 |
|
