| Part number: | 405K100CB4G |

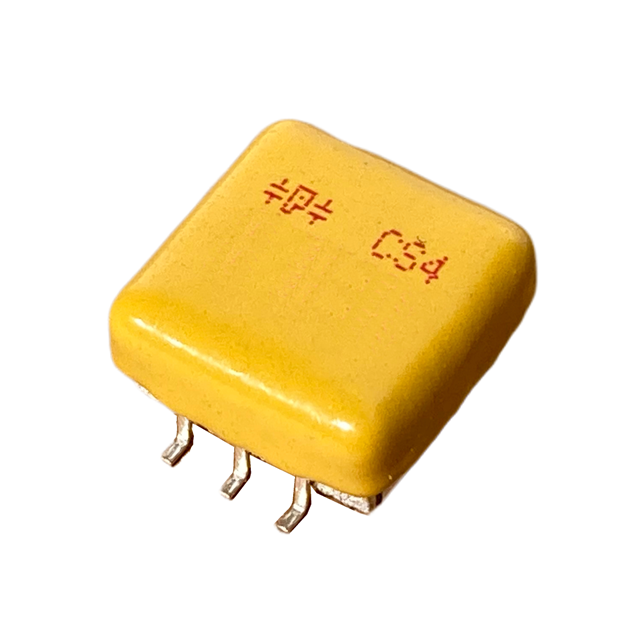

| Description: | MLP CAPACITOR 4UF 100V SMD |
| Manufacturer | Quantic Paktron |
| Encapsulation | Tube |
| Quantity | 250 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Quantic Paktron" |
| Tolerance | ±10% |
| Features | Low ESR, High Temperature |
| Package / Case | 6-SMD, Gull Wing |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| Applications | EMI, RFI Suppression; High Pulse, DV/DT |
| Lead Spacing | 0.394" (10.00mm) |
| Termination | Gull Wing |
| Dielectric Material | Polyester, Metallized |
| Voltage Rating - AC | 80V |
| Voltage Rating - DC | 100V |
| Height - Seated (Max) | 0.248" (6.30mm) |
| Capacitance | 4 µF |
| ESR (Equivalent Series Resistance) | 7 mOhms |
| Size / Dimension | 0.449" L x 0.500" W (11.40mm x 12.70mm) |
|
