| Part number: | CDDA56R2WF |

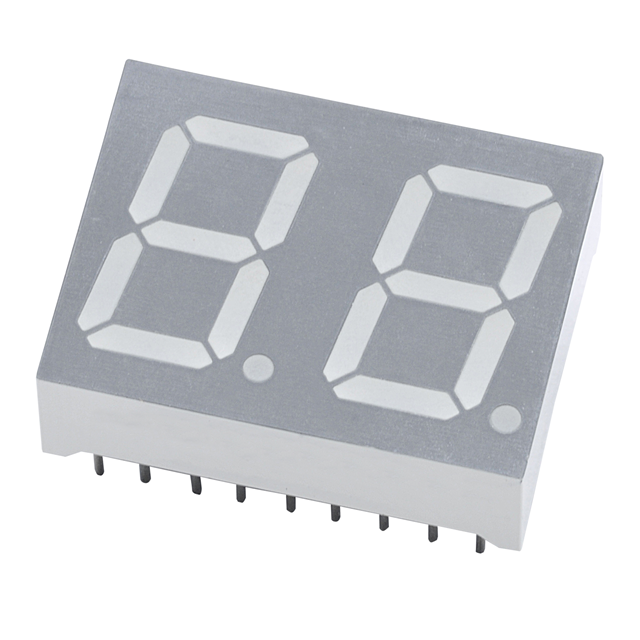

| Description: | DISPLAY 7SEG 0.56" DUAL RED 18DI |
| Manufacturer | ChromeLED |
| Encapsulation | Tray |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ChromeLED" |
| Package / Case | 18-DIP |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.750" H x 0.984" W x 0.315" D (19.05mm x 25.00mm x 8.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 35mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.56" (14.20mm) |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Wavelength - Peak | 640nm |
| Power Dissipation (Max) | 70mw |
|
