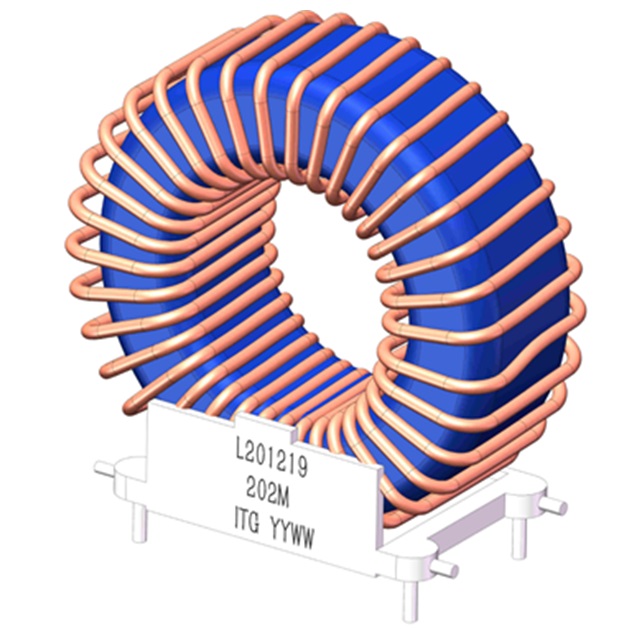

| Part number: | L201219-251MHF |
| Description: | 251.2uH, 20%, 28 mOhm DCR, 9A DI |
| Manufacturer | ITG Electronics, Inc. |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "ITG Electronics, Inc." |
| Tolerance | ±20% |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) |
| Size / Dimension | 1.319" L x 0.787" W (33.50mm x 20.00mm) |
| Mounting Type | Through Hole |
| Shielding | Unshielded |
| Type | Toroidal |
| Operating Temperature | -55°C ~ 130°C |
| DC Resistance (DCR) | 28mOhm Max |
| Current - Saturation (Isat) | 6A |
| Material - Core | Alloy Powder |
| Inductance Frequency - Test | 10 kHz |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Inductance | 251.2 µH |
| Current Rating (Amps) | 9 A |
|
