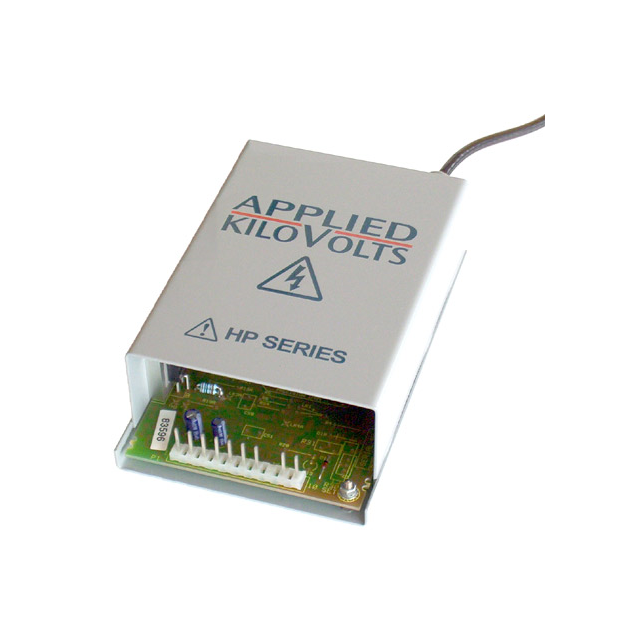

| Part number: | HP020RIP020 |
| Description: | DC/DC CONVERTER 50V-20000V 8W |
| Manufacturer | Applied Kilovolts |
| Encapsulation | Box |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Applied Kilovolts" |
| Power (Watts) | 8W |
| Size / Dimension | 8.27" L x 4.72" W x 2.17" H (210.0mm x 120.0mm x 55.0mm) |
| Mounting Type | Chassis Mount |
| Type | Enclosed, High Voltage |
| Operating Temperature | 0°C ~ 50°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 26.4V |
| Approval Agency | cURus, UL |
| Current - Output (Max) | 400µA |
| Voltage - Input (Min) | 21.6V |
| Voltage - Output 1 | 50V ~ 20000V |
| Number of Outputs | 1 |
|
