| Part number: | C4AQHBU4560P1XJ |

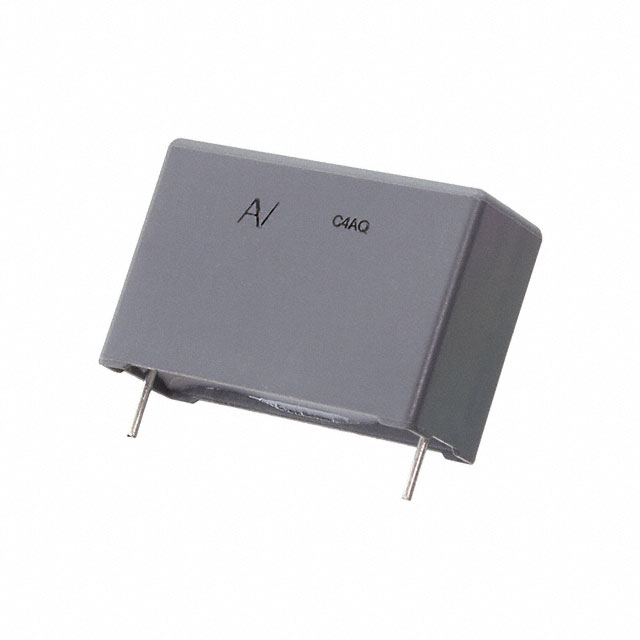

| Description: | CAP FILM 5.6UF 5% 600VDC RADIAL |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Bulk |
| Quantity | 234 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±5% |
| Features | Long Life, Low ESL |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 1.083" (27.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 600V |
| Height - Seated (Max) | 0.992" (25.20mm) |
| Capacitance | 5.6 µF |
| ESR (Equivalent Series Resistance) | 11.8 mOhms |
| Size / Dimension | 1.240" L x 0.512" W (31.50mm x 13.00mm) |
|
