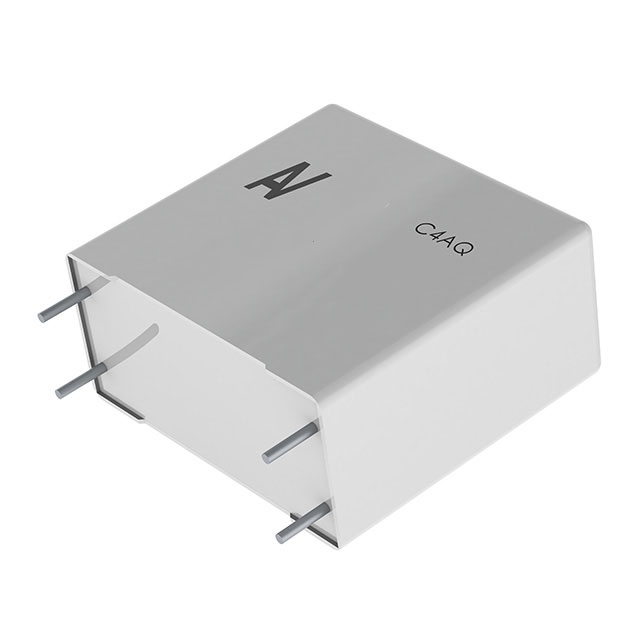

| Part number: | C4AQQLW4750P36J |
| Description: | CAP FILM 7.5UF 5% 1.1KVDC RADIAL |
| Manufacturer | TOKIN (KEMET) |
| Encapsulation | Bulk |
| Quantity | 60 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TOKIN (KEMET)" |
| Tolerance | ±5% |
| Features | Long Life, Low ESL |
| Package / Case | Radial - 4 Leads |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | Automotive; DC Link, DC Filtering |
| Lead Spacing | 1.476" (37.50mm) |
| Termination | PC Pins |
| Ratings | AEC-Q200 |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - DC | 1100V (1.1kV) |
| Height - Seated (Max) | 0.953" (24.20mm) |
| Capacitance | 7.5 µF |
| ESR (Equivalent Series Resistance) | 9.1 mOhms |
| Size / Dimension | 1.654" L x 1.378" W (42.00mm x 35.00mm) |
|
