| Part number: | 334K400CS6-FA |

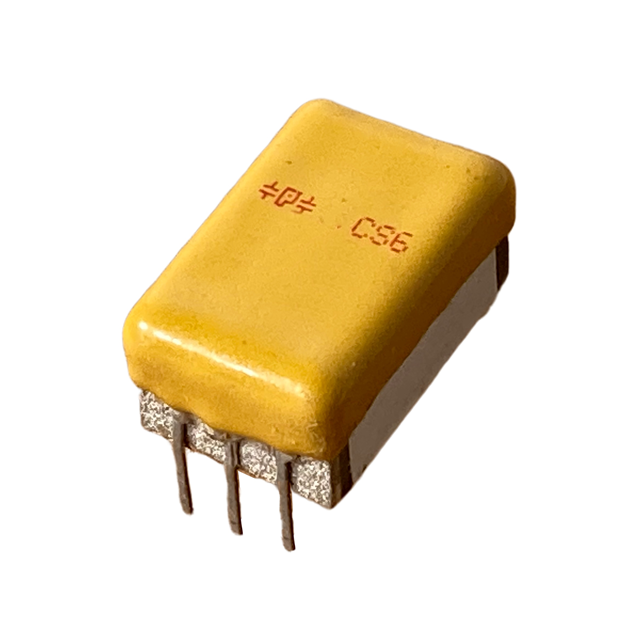

| Description: | CAPACITOR MLP 3.3UF 400V THRU-HO |
| Manufacturer | Quantic Paktron |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Quantic Paktron" |
| Tolerance | ±10% |
| Features | Low ESR, High Temperature |
| Package / Case | 6-DIP |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | EMI, RFI Suppression; High Pulse, DV/DT |
| Lead Spacing | 0.591" (15.00mm) |
| Termination | PC Pins |
| Dielectric Material | Polyester, Metallized |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 400V |
| Height - Seated (Max) | 0.319" (8.10mm) |
| Capacitance | 0.33 µF |
| ESR (Equivalent Series Resistance) | 12 mOhms |
| Size / Dimension | 0.433" L x 0.701" W (11.00mm x 17.80mm) |
|
