| Part number: | 224K100RA3 |

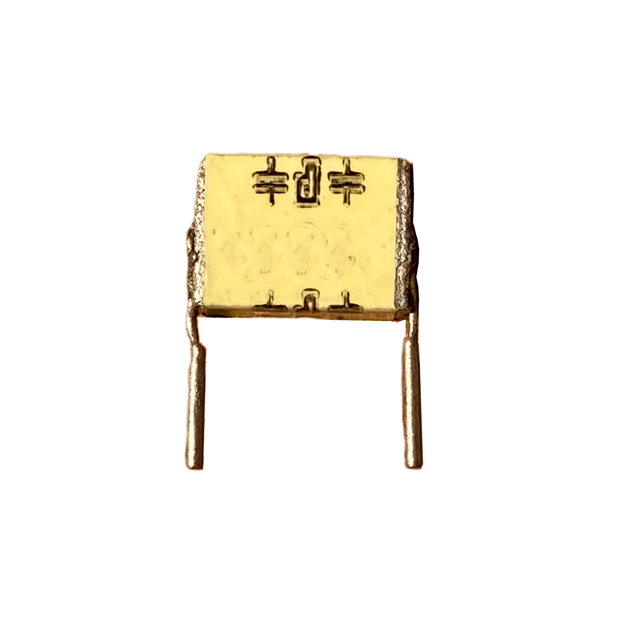

| Description: | CAPACITOR MLP 0.22UF 100V RADIAL |
| Manufacturer | Quantic Paktron |
| Encapsulation | Bulk |
| Quantity | 2500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Quantic Paktron" |
| Tolerance | ±10% |
| Features | Low ESR, High Temperature |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 125°C |
| Applications | EMI, RFI Suppression; High Pulse, DV/DT |
| Lead Spacing | 0.295" (7.50mm) |
| Termination | PC Pins |
| Dielectric Material | Polyester, Metallized |
| Voltage Rating - AC | 80V |
| Voltage Rating - DC | 100V |
| Height - Seated (Max) | 0.280" (7.10mm) |
| Capacitance | 0.22 µF |
| ESR (Equivalent Series Resistance) | 6 mOhms |
| Size / Dimension | 0.350" L x 0.154" W (8.90mm x 3.90mm) |
|
