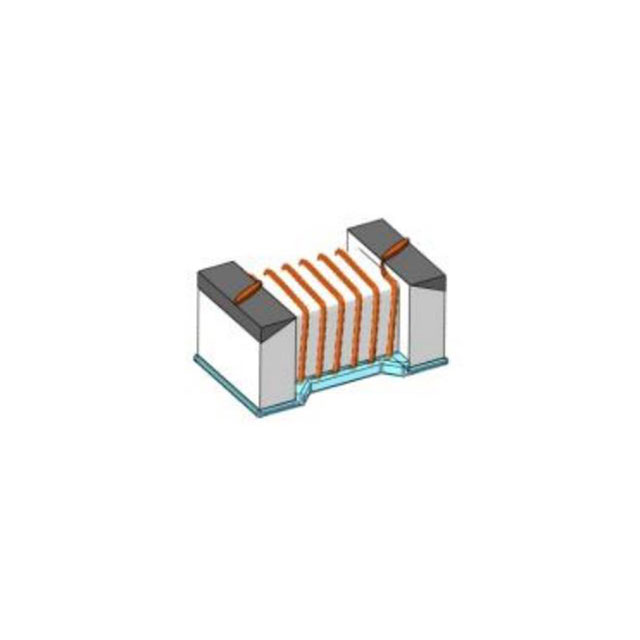

| Part number: | MWSD1005C27NGTM01 |
| Description: | FIXED IND 27NH 280MA 520MOHM SMD |
| Manufacturer | Sunlord (Shenzhen Sunlord Electronics) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 10000 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Sunlord (Shenzhen Sunlord Electronics)" |
| Tolerance | ±2% |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.043" L x 0.024" W (1.10mm x 0.60mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Type | Drum Core, Wirewound |
| Operating Temperature | -40°C ~ 125°C |
| DC Resistance (DCR) | 520mOhm Max |
| Q @ Freq | 25 @ 250MHz |
| Frequency - Self Resonant | 3.5GHz |
| Material - Core | Ceramic |
| Inductance Frequency - Test | 100 MHz |
| Supplier Device Package | 0402 |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Inductance | 27 nH |
| Current Rating (Amps) | 280 mA |
|
